Product Overview
Product Title

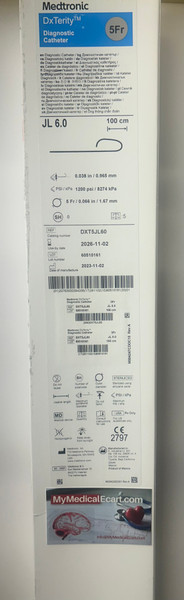

Medtronic DXT5JL60 DxTerity™ Diagnostic Catheter, Judkins Left 6.0, 5F x 100 cm – Box of 5,
Exp 2026-11-02
Product Description
The Medtronic DxTerity™ Diagnostic Catheter is engineered to deliver superior torque, lubricity, and performance for both radial and femoral procedures. Featuring the same innovations used in Medtronic’s leading guide and aspiration catheters, the DxTerity™ line combines strength, visibility, and control to help clinicians navigate even the most challenging cases with confidence.
Its Full-Wall Technology fuses catheter layers into a solid shaft for efficient torque transfer and improved durability, while the InSlide™ polymer additive enhances lubricity for smooth deliverability. With a soft, atraumatic, radiopaque tip, the catheter provides excellent visualization and safety during procedures.
Key Features
-
Superior torque and lubricity for precise catheter manipulation.
-
Full-Wall Technology for solid shaft construction and consistent performance.
-
InSlide™ polymer additive reduces friction and enhances deliverability.
-
Soft, atraumatic, radiopaque tip improves safety and visualization.
-
Double-braid wire reinforcement provides torque strength and kink resistance.
-
Ergonomic winged hub for easy, controlled manipulation.
-
Large lumen design allows high contrast media flow for improved imaging.
-
Optimized for radial and femoral procedures.
-
Broad portfolio with multiple shapes, sizes, and extended lengths available.
? Specifications
| Attribute | 5F (DXT5JL60) | 6F |
|---|---|---|
| Catheter O.D. (in) | 0.066" | 0.079" |
| Lumen I.D. (in) | 0.047" | 0.056" |
| Length | 100 cm | 100 cm / 125 cm options |
| Braiding | Hub to tip | Hub to tip |
| Dry Flow Rate @ 600 psi | 19 mL/sec | 28 mL/sec |
| Dry Flow Rate @ 1200 psi | 27 mL/sec | 40 mL/sec |
| Tip Curve | Judkins Left 6.0 | Various JL/JR sizes |
| Packaging | Box of 5 | Box of 5 |
| Expiration Date | 2026-11-02 | Varies |
Disclaimer: Expired products Not For Human Use. For Bench Testing and research use only.The item listed above is expired and may be used for educational, training, and non-clinical research purposes only. Any product information appearing below, including the product indication statement, pertains to an in date item only.
